ATLAS Platinum PVL-15

Atlas Platinum PVL15 ALI Certified Overhead 15,000 lbs. Capacity 2 Post Above Ground Car Lift

The Atlas Platinum PVL15 is an ALI CERTIFIED, commercial grade, overhead two-post lift designed to accommodate both long wheel base trucks and passenger cars. The Atlas Platinum PVL15 has an overall height of 174 1/2" (14' 6 1/2"), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit.

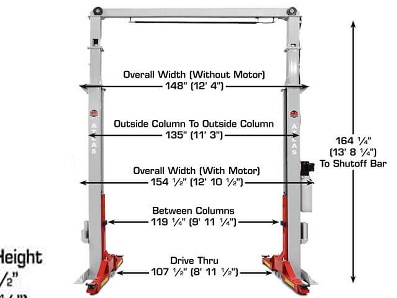

The Atlas Platinum PVL15 Specifications
Capacity 15,000 lb.
Overall Height 174 1/2" (14' 6 1/2")
Height To Shut Off Bar 164 1/4" (13' 8 1/4")
Overall Width (With Motor) 154 1/2" (12' 10 1/2")
Overall Width (Without Motor) 148" (12' 4")
Outside Column to Outside Column 135" (11' 3")
Maximum Lifting Height (Without Truck Adapters) 72 3/4" (6' 3/4")
Maximum Lifting Height (With Truck Adapters) 87 1/2" (7' 3 1/2")
Adapter Sizes 10" and 5" with 2 3/4" peg
Minimum Pad Height 5 3/4"
Clearance Between Columns 119 1/4" (9' 11 1/4")
Drive Thru 107 1/2" (8' 11 1/2")
Arm Length 36" - 52" (3' - 4' 4")
Column Size 14 1/2" x 8"
Thickness of Steel 8mm
Cable Diameter .375"
Motor/Electrical Requirement 220 Volt, Single (1) Phase;
A 30 amp Breaker Is Recommended
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight 2,400 lb.
