GrandPrix Series 2-Post Lift
Specifications
1-877-2ARESCO
Specializing in car & truck lifts, brake lathes, pipe benders, tire changers, and wheel balancers, and much more! ARESCO, Inc. is the source for all of your automotive equipment needs. We carry a full line of equipment and replacement parts for most makes and models. With over 25 years of experience in the automotive industry, we at ARESCO are committed to providing our customers with quality products and service.
or 1-877-227-3726
MODEL GP-7
Lifting Capacity* 7,000 lbs. / 3,175 kg
*Max Capacity / Front Axle 3,500 lbs. / 1,588 kg
*Max Capacity / Rear Axle 3,500 lbs. / 1,588 kg

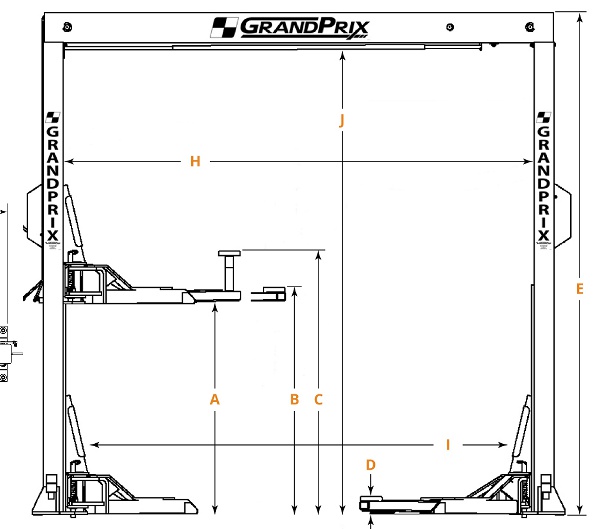

A -Rise -74.5" / 1,892 mm
B - Rise + Pad Only - 78" / 1,981 mm
C - Rise + Pad + Adapter - 86.5" / 2,197 mm
D - Min. Height + Pad - 4.5" / 114 mm
E - Height Overall - 150" / 3,810 mm
F - Width Overall - 125" / 3,175 mm
G - Outside Columns - 119.5" / 3,035 mm
H - Inside Columns - 110" / 2,794 mm
I - Drive-Thru Clearance - 89.5" / 2,273 mm
J - Floor to Overhead Switch - 140" / 3,556 mm
K - Front Arm Reach(Min) - 26" / 660 mm
K - Front Arm Reach(Max) - 42" / 1,067 mm
L - Rear Arm Reach (Min) - 28" / 711 mm
L- Rear Arm Reach (Max) - 47.5" / 1,207 mm
Max Load Per Arm - 1,750 lbs
Motor - 220 VAC

GrandPrix Series 2-Post Lift / 7,000-lb. Capacity / 150” Overall Height
Our standard-height GP-7 is fit for garages with 13' ceilings and offers a full 78" max rise. These dimensions are similar to other two-post lifts, but the GP-7 offers a much slimmer profile than other lifts. This makes it ideal for narrow garages looking to fit more lifts in limited space.
