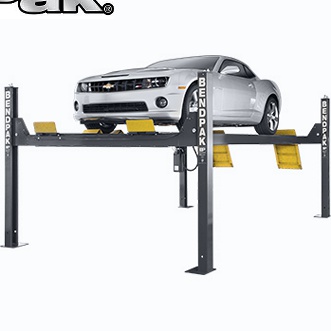

Bendpak 14,000 lb Lift
Specializing in car & truck lifts, brake lathes, pipe benders, tire changers, and wheel balancers, and much more! ARESCO, Inc. is the source for all of your automotive equipment needs. We carry a full line of equipment and replacement parts for most makes and models. With over 25 years of experience in the automotive industry, we at ARESCO are committed to providing our customers with quality products and service.
1-877-2ARESCO
Automotive Repair Equipment Supply COmpany
or 1-877-227-3726
792 N Perry St Pontiac MI 48342
FEATURES

14,000-lb. lifting capacity
•CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
•Mid- to long-style approach ramps for low ground clearance vehicles
•Runways include rail-kit for optional accessories
•Single hydraulic cylinder mounted underneath runway
•Fully enclosed lifting cables, safety locks, and sheaves
•Internal anti-sway slider blocks in each column
•Pneumatic push-button safety release
•Features heavy-duty 1/2" aircraft cable
•Safety locks enclosed in columns minimize pinch points
•Oversized sheave diameter reduces cable fatigue
•Oversized self-lubricating cable rollers
•Rugged 1-3/4" roller axles
•Multi-position safety locks in each column
•Customizable power unit location
•Approach ramps incorporate built-in rear-wheel chocks
•Independent backup slack-cable safety latches
•Runways feature non-skid surface
•Optional drive-thru ramps available
•Optional drip trays available
•Optional 7,000-lb. capacity rolling jacks available (Model RJ-7)
•ETL approved


Lifting capacity*: 14,000 lbs. / 6,350 kg
*Max capacity / front axle: 7,000 lbs. / 3,175 kg
*Max capacity / rear axle: 7,000 lbs. / 3,175 kg

•Overall width: 130" / 3,301 mm
•Outside length: 213" / 5,408 mm
•Overall length: 241" / 6,131 mm
•Height of columns: 93" / 2,362 mm
•Runway min height: 7-5/8" / 192 mm
•Max rise: 70" / 1,778 mm
•Max lifting height: 77-5/8" / 1,970 mm
•Width between posts: 120" / 3,046 mm
•Runway width: 20" / 508 mm
•Width between runways: 37-1/2" – 51" / 952 mm – 1,295 mm
•Runway centerline: 57-1/2" - 71" / 1,460 mm - 1,803 mm
•Outside edge of runways: 77-1/2" - 91" / 1,968 mm - 2,311
•Drive-thru clearance: 98" / 2,482 mm
•Length of runways: 199" / 5,054 mm
•Min wheelbase @ rated capacity: 140" / 3,556 mm
•Min wheelbase @ 75% capacity: 120" / 3,048 mm
•Min wheelbase @ 50% capacity: 100" / 2,540 mm
•Min wheelbase @ 25% capacity: 80" / 2,032 mm
•Locking positions: 13
•Lock spacing: every 4" / 102 mm
•Lifting time: 60 sec
•Motor: 220 VAC / 60 Hz / 1 Ph
•Shipping weight: 2,605 lbs. / 1,182 kg
•Shipping dimensions: 212" x 24" x 40" / 5,385mm x 610 mm x 1,016 mm

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

RJ-7
(5175346)
DP-30
(5150509)
WSA-100
(5210436
