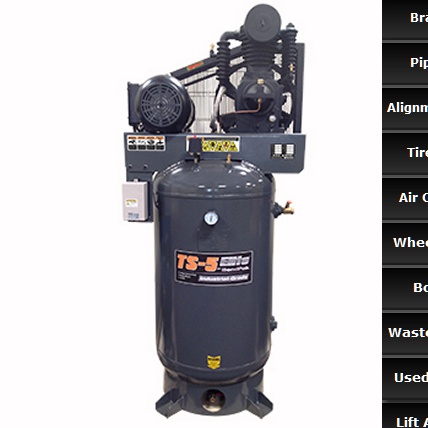

TS-580V-601

ELITE ADVANTAGES:

Extra-quiet, low-RPM pump
5 HP energy-efficient motor
Pressure switch controlled ensures efficient operation at all times with no wasted energy
Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with a pressed-in sleeves do
Cast-iron Elite pump features simple splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling
Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
Fully-enclosed belt guard
ASME rated tank
Large surface area and cooling fins on cylinders and forced-air aftercooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
Precision honed cylinders increase efficiency and oil control
Oversized ductile iron crankshaft provides extra strength and longer wear
Tapered roller main bearings provide full contact and support of the crankshaft and needle-type piston pin bearings properly distribute bearing loads
Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble-free operation
ASME rated safety valve protects the compressor from overpressure and safeguards the operator
Balanced flywheel and counterbalanced crankshaft provides vibration-free operation
Readily accessible disc-valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance
High-density, die-cast aluminum alloy rods minimize reciprocating weight
Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
Automatic pressure switch provides auto start and stop
Integrated pressure unloader valves are built into the intake valve assembly on the compressor head reducing internal pump heat from initial start-up compression
Pressure gauge with service valve
Oversize replaceable air filter

Tank: 80 gallons / 300 L / Vertical Tank
Voltage: 208 - 230 V
Horsepower: 5 Hp
Phase: 1 Ph
Hertz: 60 Hz
Running Load Amps (SFA) 26-23.8A
Peak Start-up Amps 54-48A
Recommended Breaker 30A
Noise level: 75 dB
Pump Style: 2-Stage/2-Piston/Vertical
Pump RPM: 625 rpm
Motor RPM: 1740rpm
Lubrication: splash / oil
Cubic feet per minute @ 90 psi: 17.9 CFM
Cubic feet per minute @ max psi: 17.2 CFM
Max psi: 175 psi
Shipping weight: 619 lbs. / 281 kg
Shipping dimensions: 39" x 26" x 79" / 991 mm x 660 mm x 2006 mm
