Bendpak 12,000 lb Alignment Lifts
Lifting Capacity-12,000 lbs
Maximum Lifting Height-74"
Lowered Height-11 1/4"
Overall Length With Approach Ramps-296"
Minimum 4-Wheel Alignment-87"
Maximum 4-Wheel Alignment-160"
Maximum 2-Wheel Alignment-194"
Maximum General Wheelbase-199"
Motor-220v 60hz 1ph
The Quatra™ Series Pantograph Lifts from BendPak™ - Raising the Bar
The distinctive Quatra™ series lifts by BendPak™ revolutionize the lifting
industry by offering a 12,000-pound lifting capacity and a true vertical lift for a
more compact footprint, better accommodating smaller service bays and work
areas. Their unique quad-opposing pantograph scissors design eliminates
restrictive arm structures found on other scissors car lift types that typically get
in the way. Quatra lifts provide you with full, unobstructed vehicle access and
effortless workspace entry and exit. More space means more freedom for you to
work and work efficiently which increases productivity and most of all, your
profits. No other scissors lift on the market offer the freedom that BendPak’s
Quatra series lifts provide.
The extended length Quatra XR-12000A was designed for vehicle alignments and
general service work and accommodate a wide variety of wheelbases.
Integrated recessed full-floating front radius plates and oversized rear
slip-plates enable you to perform four-wheel alignments on a full spectrum of
vehicles ranging from full-size work trucks to modern mini cars. The Quatra
XR-12000A is also compatible with all leading alignment instrumentation,
including new 3D systems and camera type wheel aligners.
Minimum Wheelbase@rated capacity-155"
Minimum Wheelbase@75% capacity-135"
Minimum Wheelbase@50% capacity-110"
Minimum Wheelbase@25% capacity-90"

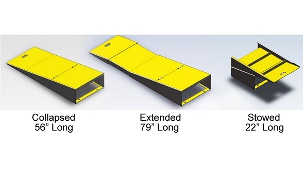

Approach Ramp Configuration
An integrated rolling bridge airline kit is available
22150 Eight Mile Rd. Southfield MI. 48033
12,000-lb. Capacity / Quatra™ Scissors Alignment Lift /
Includes Turnplates and Slip Plates
BendPak's Quatra™ alignment lift is the next evolution in
industrial-strength lifting technology. 12,000 lbs. of true
vertical lifting power for a more compact footprint will better
accommodate smaller service bays and work areas. The
XR-12000AL provides you full, unobstructed vehicle
