Hydraulic Power Units
Specializing in car & truck lifts, brake lathes, pipe benders, tire changers, and wheel balancers, and much more! ARESCO, Inc. is the
source for all of your automotive equipment needs. We carry a full line of equipment and replacement parts for most makes and models.
With over 25 years of experience in the automotive industry, we at ARESCO are committed to providing our customers with quality
products and service.

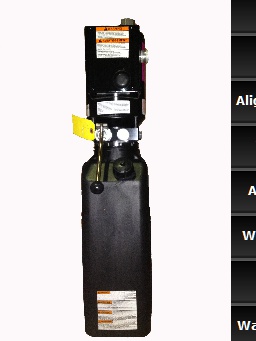

STONE HYDRAULICS POWER UNIT, complete, ETL Certified Stone
Complete replacement hydraulic POWER UNIT for most lifts or hoists. ETL Certified. Includes
hydraulic tank, pump, motor & switch. Stone (Fenner) brand. Assembled in the USA.
•Compatible with virtually every 2-post lift up to (and including) 11,000 lbs. capacity (and many
12k 2-post), and 4-post lifts up to (and including) 12,000 lbs. capacity. Also compatible with
in-ground "cartridge" lifts.
•2.1 Gallons per Minute flow rate.
•208-230 volt single phase. 60 hz.
•2 hp 3450 rpm motor (3.5 hp motor torque equivalent).
•3.5 gallon tank - enough capacity for larger cylinders.
•Compatible with standard hydraulic oil or Dexron II transmission fluid (not included).
•Cartridge type high pressure relief valve, 2755 psi.
•Fast flow rate matches lift speed of most OEM power units.
•Pump outlet (SAE 6 type, 9/16"-18 straight thread) can be on either side of unit.
•Universal mounting bracket.
•Pre-wired with cable-pull overhead limit switch (also compatible with lifts that have an
electronic limit switch).
ARESCO Hydraulic power unit
230V 60 hz 1 ph
13.2 amp 2850/3420 rpm 2.5 hp
Fitting is a j.i.c. 3/8 flare fitting
The pressure relief setting is 2500 p.s.i.
The reservoir holds 3.5 gallons
adjustable output pressure
Universal Mounting bracket fits most lifts
will work on most 2 post or 4 post above ground car lifts
Duro brand Complete replacement hydraulic
POWER UNIT for most lifts or hoists. Includes hydraulic tank, pump,
motor & switch. 208-230 volt single phase. 60 hz.
2.5 hp dual capacitor motor.
Easily replaceable cartridge type lowering valve.
Compatible with standard hydraulic oil or Dexron II transmission fluid (not
Cable type Overhead Shutoff Switch included and wired in (if you don't use it you
can just leave it because it is a "normally closed" switch).
Adjustable high pressure relief valve.
Pump outlet (SAE 6 type, 9/16"-18 straight thread) on left side.
Universal mounting bracket.
1 year warranty.
